Short Pass Filters

Ultra-steep edge thin film filters
High transmission with OD6+ blocking and ultra-steep slopes across a wide spectral range (310–1800 nm).
Request a QuoteContact Engineering
Two circular short pass optical filters overlapping at an angle, one with a dark olive-green coating and one with a vivid red-orange edge, illustrating the filter's spectral cutoff characteristics.

Key Features

Up to OD6+ blocking
Fully custom designs
Made to order
Hard dielectric thin film coatings
Durable Quadrode™ plasma PVD technology
Available mounted or unmounted
Up to 95% average transmission
Ultra steep slopes

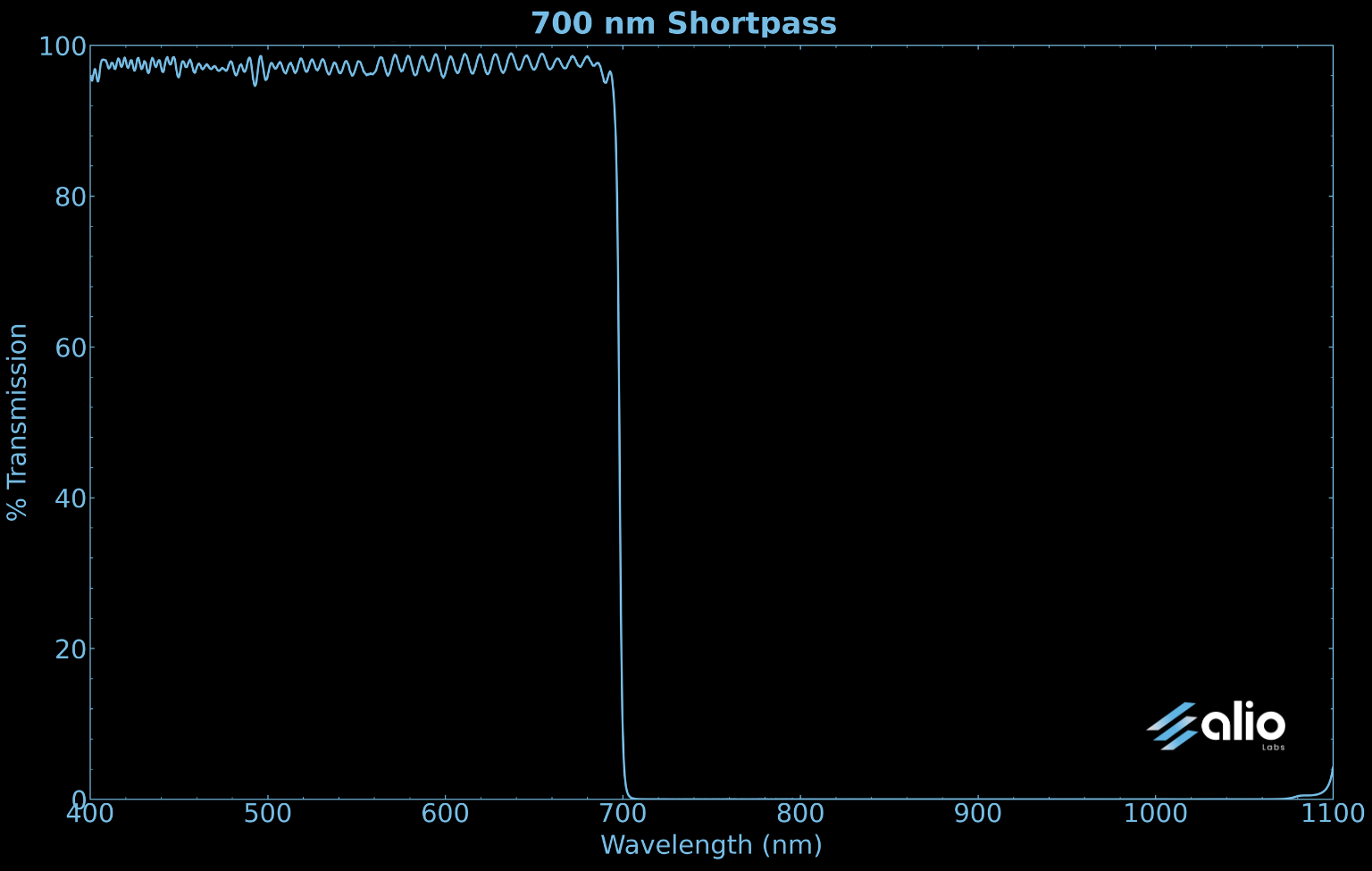

Spectral transmission chart for a 700 nm short pass filter, showing approximately 97% transmission from 400 to 700 nm with an ultra-steep cutoff edge at 700 nm, dropping to near zero and maintaining OD6+ blocking through 1100 nm.

Technical Specifications

PARAMETER
SPECIFICATION
Spectral edge
310–1800 nm standard
Blocking
Up to OD6+
Transmission
Up to 95% average
Slope (Transition Region)
typically < 1%
Coating Type
Hard dielectric coatings utilizing Quadrode™ plasma PVD technology
Substrate Materials
Borofloat, Fused Silica, BK7, Custom
Surface Quality
60-40 scratch-dig
Clear Aperture
>85% of diameter on mounted parts
Configuration
Mounted or unmounted
Custom CWL / Sizing
Available on request
Environmental
Please contact for full environmental specifications
Full Specifications
Download data sheet

Request a Quote

Contact our team for pricing, custom specifications, and lead times.

Request a QuoteContact Engineering
